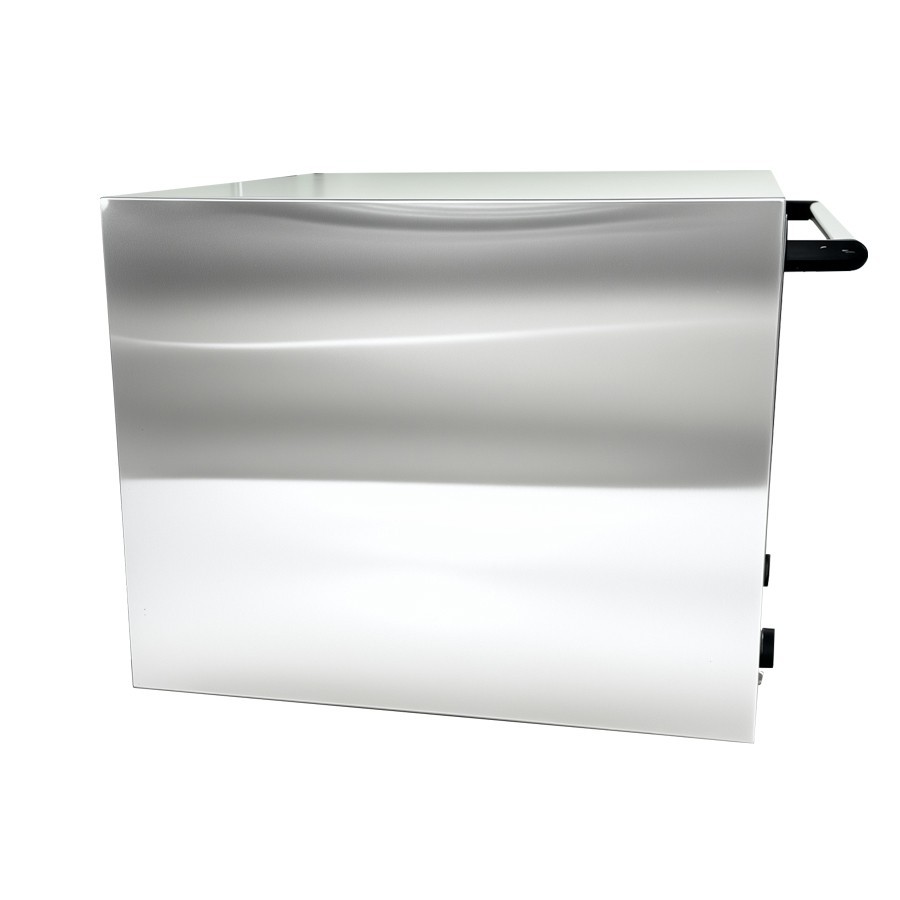

Dual Fan Convection Oven

Product Overview The ER-8A is a countertop dual fan convection oven engineered for high-volume commercial kitchens. Equipped with five 584×400mm aluminum baking trays (4-tray configuration optional) and powered by an 8kW dual fan hot air circulation system, this unit delivers...

Send Inquiry

Description

Product Overview

The ER-8A is a countertop dual fan convection oven engineered for high-volume commercial kitchens. Equipped with five 584×400mm aluminum baking trays (4-tray configuration optional) and powered by an 8kW dual fan hot air circulation system, this unit delivers professional-grade batch baking capability within a compact footprint, making it ideal for artisan bakeries, hotel pastry kitchens, and chain restaurant central commissaries that demand both consistency and efficiency.

Unlike conventional single-fan ovens, the dual fan system generates stronger and more uniform hot air circulation, effectively eliminating temperature variation between rack levels. This enables multi-level baking with consistent browning across all trays without requiring manual tray rotation during the baking cycle. The integrated steam spray function injects moisture during the initial baking phase to promote crisp, crackled crusts on artisan breads, while the top heating element supports gratinating and surface browning applications - one oven covering a wide spectrum of professional baking needs.

Key Features

Dual Fan Hot Air Circulation System: Powered by a twin-motor design, the dual fan system delivers higher air volume and more uniform airflow compared to single-fan alternatives. Enhanced hot air penetration ensures consistent browning across all five trays simultaneously, eliminating hot spots and undercooked centers. Baking efficiency is improved by approximately 20%-30%, delivering reliable batch-to-batch consistency for high-volume operations.

8kW High Power with 0-300°C Temperature Range: The 8kW rated power ensures rapid preheating and quick temperature recovery, keeping production flowing during peak service hours. The 0-300°C temperature range accommodates the full spectrum of baking applications - from low-temperature proofing and mid-range baking to high-heat rapid browning.

Steam Spray Function: The integrated steam injection system delivers atomized moisture into the baking chamber during the initial baking phase, promoting crisp, crackled crust development while sealing interior moisture for a tender crumb. This function is specifically designed for European-style crusty breads such as baguettes, ciabatta, and artisan sourdough loaves.

Top Heating Function: Equipped with a dedicated top heating element, operable independently or in combination with convection mode. Ideal for gratinating pasta dishes, melting cheese toppings, and achieving surface browning on roasted items - expanding the oven's application versatility.

120-Minute Precision Timer: Extended timer range up to 120 minutes supports long-duration low-temperature roasting and proofing applications. Timer completion alert allows kitchen staff to attend to other tasks while the oven runs unattended.

304 Stainless Steel Heating Elements: Heating elements are constructed from 304 stainless steel, offering superior resistance to high-temperature oxidation and extended service life. Compared to standard heating elements, 304 stainless steel maintains structural integrity and resists corrosion under prolonged high-heat conditions, reducing long-term maintenance costs.

8K Mirror-Finish Chamber Interior: The chamber features 0.6mm thick 8K mirror-finish stainless steel, providing an ultra-smooth surface that resists grease adhesion and simplifies daily cleaning. Rounded corner welding minimizes hygiene blind spots, meeting commercial kitchen sanitation standards.

Snowflake Sand Exterior Finish: The exterior is fabricated from 0.8mm thick 201 stainless steel with a snowflake sand finish. The specialized surface treatment provides scratch resistance and minimizes fingerprints and water spots, maintaining a clean appearance throughout years of heavy use.

Export-Grade Packaging: Available in carton packaging or plywood crate packaging options. The plywood crate is moisture-treated with high-density foam padding and reinforced corner braces to secure the unit against impact and vibration during ocean freight and long-haul land transport.

Standard Accessories (Included with Purchase)

1,584×400mm Aluminum Baking Trays × 5 pcs

2,User Manual (Installation, Operation & Maintenance Guide) × 1 pc

Optional Accessories (Available for Separate Purchase)

1,584×400mm Stainless Steel Baking Trays (recommended for high-temperature, high-grease applications; offers superior durability compared to aluminum trays)

2,584×400mm Perforated Baking Trays (ideal for pizza and bread requiring bottom heat ventilation)

3,584×400mm Non-Stick Coated Baking Trays (reduces greasing requirements for high-sugar pastries)

4,Food-Grade Stainless Steel Wire Racks × 5 tiers

5,Food Temperature Probe (insertion-type thermometer for precise core temperature monitoring)

6,Replacement 304 Stainless Steel Heating Elements

7,Replacement Oven Door Gasket

8,Custom Logo Control Panel (available for OEM orders)

Packaging & After-Sales Support

Packaging Solution:

This product is available with two export packaging options:

(1)Carton Packaging (gross weight 88KG, suitable for short-haul land transport or LCL shipments);

(2)Plywood Crate Packaging (gross weight 101KG, recommended for FCL ocean freight and long-haul international transport). The plywood crate is moisture-treated and secured with high-density foam padding and reinforced corner braces to withstand impact and vibration during ocean freight and long-haul land transport. ISPM-15 heat-treated certified crating (required for customs clearance in certain countries) is available upon request - please specify at the time of order.

Technical Specifications

Specification	Details
Model	ER-8A
Capacity	5 Trays (4-Tray optional)
Dimensions (W×D×H)	700 × 500 × 350 mm
Voltage	220~240V
Net Weight	66 KG
Gross Weight	Carton Packaging: 88 KG,850 × 965 × 660 mm Plywood Crate Packaging:101 KG,1000 × 930 × 795 mm
Power	8 kW
Temperature Range	0–300°C
Timer Range	120 Minutes
Tray Size	584 × 400 mm × 5 pcs
Tray Material	Aluminum(Stainless Steel Optional)
Body Material	201 Stainless Steel (Snowflake Sand Finish), 0.8mm Thickness
Chamber Material	8K Mirror-Finish Stainless Steel, 0.6mm Thickness
Heating Element Material	304 Stainless Steel
Fan Type	Dual Fan Hot Air Circulation
Functions	Convection / Steam Spray / Top Heating
Packaging	Export wooden case
Target Applications	Artisan Bakeries \| Hotel Pastry Kitchens \| Chain Pizzerias \| French Patisseries \| Café Central Kitchens \| Chain Restaurant Western Stations \| Corporate Canteens

Note: Plywood crate packaging is recommended for ocean freight export orders; carton packaging is suitable for land transport or short-haul shipments. ISPM-15 heat-treated certified crating is available upon request - please specify at the time of order.

FAQ

Q: What is the practical advantage of dual fans compared to a single fan?

A: The dual fan system generates stronger and more uniform hot air circulation. In practical use, single-fan ovens baking multiple trays often require staff to manually swap tray positions between upper and lower racks midway through baking - otherwise, top trays may burn while bottom trays remain undercooked. The dual fan system's higher air volume and optimized airflow design effectively eliminates temperature variation between rack levels, enabling consistent browning across all five trays simultaneously without manual rotation. This saves labor while ensuring reliable batch-to-batch consistency.

Q: What products benefit from the steam spray function? Does the oven require a water hookup?

A: The steam spray function is ideal for crusty European-style breads such as baguettes, ciabatta, and artisan sourdough loaves. The oven features a built-in water reservoir - no external plumbing required. Simply fill the reservoir with purified water before use. Purified water is recommended to extend the service life of the spray system and minimize scale buildup.

Q: What are the electrical requirements for the 8kW power rating?

A: The unit is rated at 8kW, 220-240V. A dedicated circuit with an appropriately rated circuit breaker and power cable is recommended. Before installation, have a licensed electrician verify that the distribution panel capacity meets the equipment's operating requirements and ensure proper grounding.

Q: What is the difference between aluminum trays and stainless steel trays? Which should I choose?

A: Aluminum trays offer faster heat conduction and lighter weight, making them ideal for everyday baking applications. They are included as standard with this oven. Stainless steel trays provide greater heat resistance and corrosion resistance, making them better suited for high-temperature, high-grease applications (such as roasting meats or high-fat pastries) and offering longer service life. Selection may be based on your specific menu requirements; mixed configurations are also available.

Q: Can the top heating function be used independently?

A: Yes. The top heating function can be operated independently or in combination with the convection fan. Independent use is suitable for gratinating cheese dishes and surface browning applications; combined use with convection mode is ideal for items requiring overall even heating with enhanced top browning.

Q: What is the Minimum Order Quantity (MOQ)? Do you offer customization?

A: Standard MOQ is 5 units. Reduced MOQ may be considered for first-time buyers at the discretion of the sales manager. We offer OEM customization services, including custom logo printing on control panels, voltage adaptation (e.g., 380-415V/50Hz for specific markets), and tray size adjustments. Minimum order quantities for customized units vary by specification - please contact our sales team for details.
