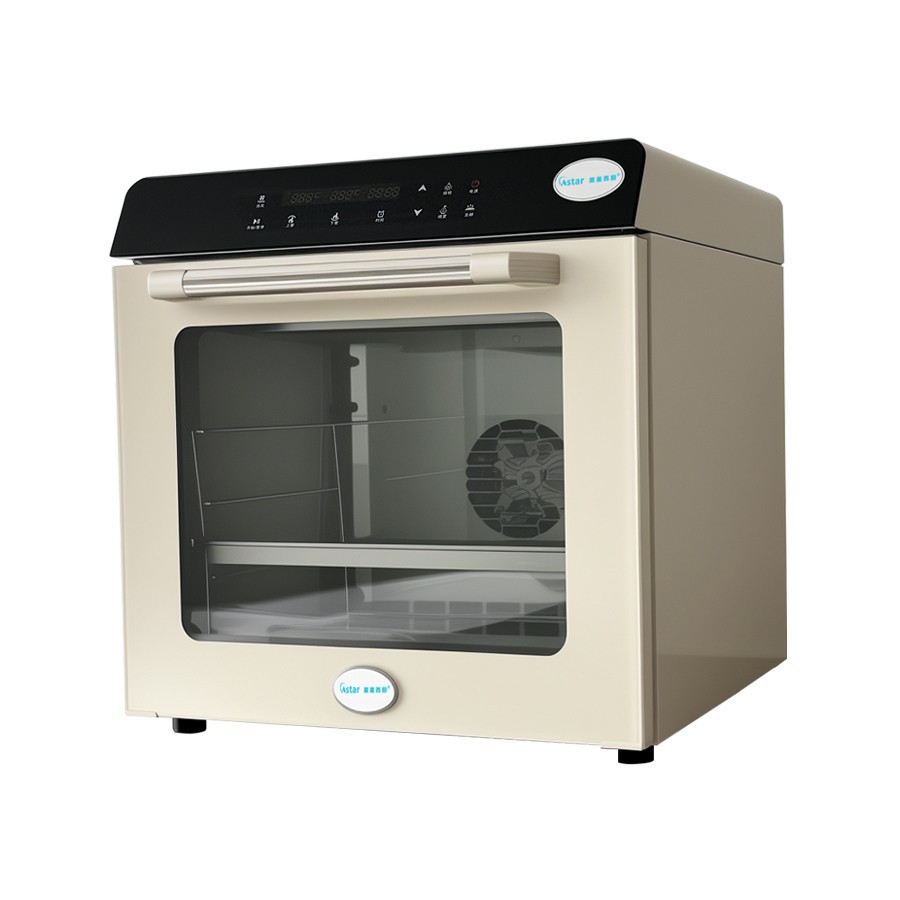

Digital Panel Convection Oven

Description

Product Overview

The D80 is a countertop dual-mode oven that combines the professional performance of a convection oven with the precision of a deck oven in a single compact unit. Featuring a 4-tier rack system compatible with 400×318mm standard trays, the D80 is available in three elegant color options: White, Gold, and Antique Bronze. By integrating 360° hot air circulation with independent top and bottom heating control, this oven handles everything from artisan breads and puff pastries to gratins and pizzas - making it the ideal solution for boutique bakeries, hotel pastry kitchens, and upscale cafés where space is limited but quality is non-negotiable.

Equipped with a touchscreen control panel, the D80 offers independent top and bottom heating control, convection circulation, reversible fan rotation, steam spray, proofing, and a cooling system. The temperature range spans 0-260°C with a 99-minute timer, delivering consistent, precise results batch after batch.

Key Features

Dual-Mode Design: Convection Meets Deck Oven - The D80 merges independent top/bottom heating control (deck oven capability) with a hot air circulation system (convection capability) in one appliance. In independent heating mode, top and bottom heating elements can be adjusted separately for precise surface browning and base crisping. In convection mode, the reversible fan drives 360° hot air circulation for multi-level baking with uniform browning across all trays. One oven replaces two separate machines, saving both space and capital investment.

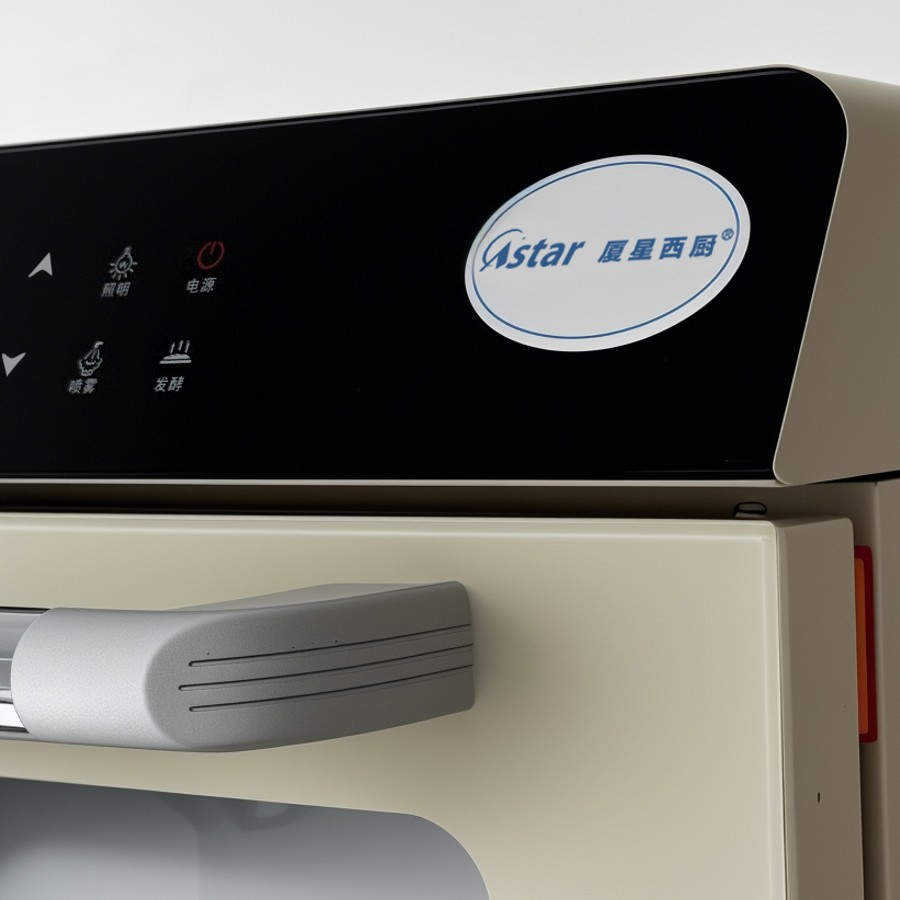

Touchscreen Control + Independent Top & Bottom Heating - The touchscreen interface allows independent temperature setting for the upper and lower heating elements. Users can fine-tune heat distribution to match specific recipes - higher bottom heat for pizza and pies requiring a crisp base; higher top heat for cheese gratins and surface browning.

Reversible Fan + Hot Air Circulation - The circulation fan features a reversible rotation function, alternating direction to create multi-directional airflow within the chamber. This effectively eliminates baking dead zones and ensures even heat distribution across every rack level. Compared to fixed-direction fans, the reversible design improves temperature uniformity by approximately 20%, delivering consistent browning across full trays of cookies, croissants, and egg tarts.

Steam Spray Function - The integrated steam injection system delivers atomized moisture during the initial baking phase, promoting crisp, crackled crust development on baguettes and artisan loaves while sealing interior moisture for a tender crumb. Steam volume is adjustable to accommodate varying recipe requirements.

Low-Temperature Proofing Mode - Built-in proofing function with a temperature range of 30-40°C eliminates the need for a separate proofing cabinet. Ideal for bulk fermentation and final proofing, further reducing equipment investment.

99-Minute Precision Timer + Cooling System - Extended timer range up to 99 minutes, paired with an integrated cooling fan that rapidly lowers chamber temperature after baking. This minimizes waiting time between batches and improves workflow efficiency during continuous operation.

Water Drainage Function - The unit includes a dedicated water drainage system that quickly evacuates residual water from the internal reservoir and piping after steam cycles or before cleaning. This reduces mineral scale buildup and extends the service life of the steam injection system.

201 Stainless Steel Construction, Three Color Options - The exterior is fabricated from durable 201 stainless steel, engineered for easy cleaning and long-term reliability. Available in White, Gold, and Antique Bronze to complement various kitchen aesthetics and maintain visual consistency in high-end commercial spaces.

Optional Accessories (Available for Separate Purchase)

400×318mm Perforated Baking Trays (ideal for pizza and bread requiring bottom heat ventilation)

400×318mm Non-Stick Coated Baking Trays (reduces greasing requirements for high-sugar pastries)

Replacement Heating Element Assembly

Replacement Oven Door Gasket

Custom Color Panels (available for OEM batch orders)

Packaging Solution

This product utilizes an export-standard packaging configuration:

01.

Structural Integrity

The oven body is fully encased in custom-molded foam and secured within a high-strength corrugated carton, reinforced externally with strapping bands to maintain stability during transit.

02.

Shock Mitigation

Supplementary cushioning pads are positioned at all four corners and key load-bearing points to absorb impact and vibration encountered during overland and ocean freight.

03.

Moisture Barrier

The equipment is wrapped in a protective moisture barrier film, with an additional humidity-resistant layer integrated into the carton interior to shield against maritime humidity exposure.

04.

Custom Options

Plywood crating or ISPM-15 heat-treated certified crating (required for customs clearance in certain countries) is available upon request - please specify at the time of order.

FAQ

Q: What types of products are best suited for Convection mode vs. Deck mode?

A: Convection mode (hot air circulation) is ideal for multi-level baking of items requiring uniform browning, such as cookies, croissants, puff pastry, macarons, and egg tarts - up to 4 trays can be baked simultaneously with consistent results. Deck mode (independent top/bottom heating) excels with items requiring precise control over surface and base heating, such as pizzas, gratins, cheese bakes, and savory tarts, allowing customized heat distribution for the perfect crisp base and ideal top browning.

Q: How does independent top and bottom heating work in practice?

A: The touchscreen panel allows separate temperature settings for the upper and lower heating elements. For example, when baking pizza, set the bottom heat to 220°C and top heat to 200°C - this crisps the base first while allowing the cheese to melt gradually without burning. For cheese gratins, set top heat to 220°C and bottom heat to 180°C for rapid surface browning while keeping the base from over-drying.

Q: What is the practical benefit of the reversible fan?

A: Standard fixed-direction fans create predictable airflow patterns that can result in uneven heat distribution - some areas receive more heat than others, causing inconsistent browning across multiple racks. The reversible fan alternates rotation direction to generate multi-directional airflow turbulence, effectively eliminating heat dead zones. The result: uniform browning across all four rack levels without requiring manual tray rotation mid-bake.

Q: Can the proofing function replace a dedicated proofing cabinet?

A: The proofing function adequately serves small to medium batch production. With a temperature range of 30-40°C, it supports both bulk fermentation and final proofing. For boutique bakeries or home-based studios producing up to 4 trays daily, the D80's proofing mode fully replaces a standalone proofing cabinet, saving both equipment cost and counter space. High-volume commercial operations should consider a dedicated proofing cabinet to maintain production capacity.

Technical Specifications

Specification	Details
Model	D80
Color Options	White / Gold / Antique Bronze
Capacity	4 Trays (3 or 4-tier configuration)
Dimensions (W×D×H)	515 × 615 × 545 mm
Inner Dimensions (W×D×H)	420 × 360 × 330 mm
Voltage	220~240V
Power	5 kW
Temperature Range	0-260°C
Timer Range	99 Minutes
Tray Size	400 × 318 mm × 4 pcs
Material	201 Stainless Steel
Control Type	Touchscreen Panel
Functions	Independent Top/Bottom Heating / Convection / Reversible Fan / Steam Spray / Proofing (30-40°C) / Cooling / Water Drainage
Packaging	Export wooden case
Target Applications	Artisan Bakeries \| Hotel Pastry Kitchens \| Boutique Cafés \| French Patisseries \| Home-Based Baking Studios \| Chain Restaurant Western Stations
